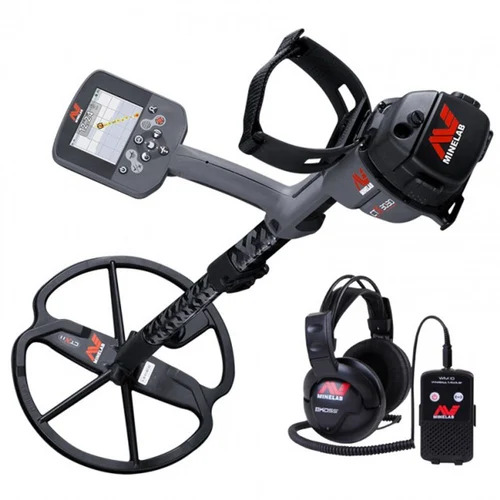

Minelab CTX 3030 Metal Detector
The Minelab CTX 3030 metal detectoris the top of the range high performance treasure detector with the most accurate discrimination available for rejecting junk targets. Packed with advanced features such as Target Trace, GPS, PC Mapping and the freedom of wireless audio it is the ultimate in the Minelab range of Treasure, Coin & Relic Metal Detectors. A simple switch on and go metal detector with a number of additional coil options and waterproof down to 3m it is sure to have unearthing many valuable treasures from the past. Suitable for use on the beach, in the park or anywhere that people have lost valuables from the past.
With a full colour LCD and advanced Target Trace discrimination you will find more treasure, even amongst junk littered areas, in all ground conditions. Enjoy the freedom of wireless audio with the versatility of built-in speaker and headphone options. With Minelab’s exclusive integrated GPS, you can navigate to your favourite locations and record your finds. Transfer your detecting information onto Google Maps using the XChange 2 PC application.
Features:
Key Technologies:
| Application | Coin, Relic, Jewellery & Beach (waterproof 10ft) |
| Technology | FBS 2, Smartfind 2, GPSi, Wi-Stream |
| Frequency/Transmission | Multiple frequencies: 1.5 - 100kHz |
| Coil (standard) | 11-inch waterproof Double-D smart coil |
| Audio Output | Built-in speaker, standard ¼-inch non-waterproof socket, custom waterproof socket (Minelab accessory headphones only) |
| Headphones Supplied | KOSS UR30 (100 ohm) supplied with detector (non-waterproof ) |

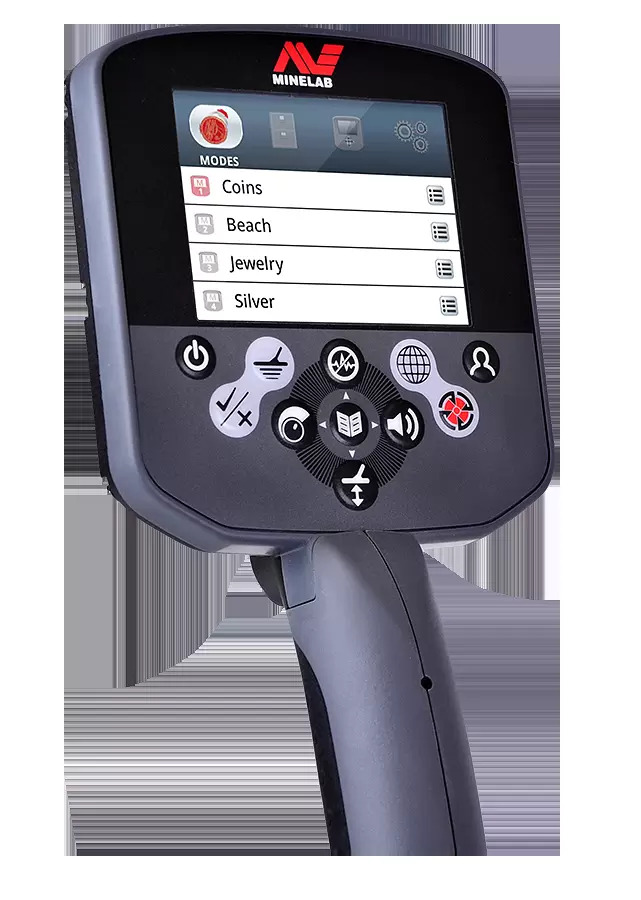

| Visual Display | Full colour LCD with backlight and adjustable brightness (1–10) |
| Backlight | Yes |
| USB Connectivity | XChange 2 (via USB) compatible with Windows XP, Vista and 7 |
| Memory | Settings saved automatically while detecting and remain until changed or reset |
| Depth Indication | Accurate gauge active in normal detecting and Pinpoint mode |
| Detect Modes | 10 fully customisable, including 5 preset (Coins, Beach, Relic, Silver & High Trash) |
| Discrimination | FSmartfind 2TM 2 dimensional colour discrimination: Ferrous 35, Conductivity 50 - 20 fully customisable discrimination patterns (2 per Search Mode) |
| Timings | - |
| Audio tone | Customisable Tone ID Profiles - 1, 2 ferrous (Fe), 2 conductive (Co), 4 Fe, 4 Co, 35 Fe, 50 Co or Combined |
| Audio Type | Normal, Long, Smooth & Pitch Hold |
| Ground Balance | Auto Compensation and Auto Ground Balance |
| Ground Balance Type | - |
| Trash Density | - |
| Pinpoint | Non-motion with modulated audio and visual crosshair on LCD, 2 modes: normal and sizing |
| Sensitivity Adjust | Auto and Manual (1–30) |
| Tune / Noise Cancel | Manual & Automatic (11 channels) |
| Threshold | Level adjustment (1–50), Pitch adjustment (1–30) |
| Target Volume Adjust | Limit & Gain (1 to 30) |
| Battery | Li-ion pack with fast charger. 12 V car adapter supplied with Standard Pack only |
| Low battery alert | Audio & visual indication. |
| Weight | 5.20 lbs (2.36 kgs) including Li-ion battery pack |
| Length | Min 37 in. (940 mm) – Max 55.3 in. (1405 mm) |
| Warranty | 3 years control box & coil. |
| SKU | 124013 |
| Model # | 3228-0101 |
| Barcode # | 811493012988 |
| Brand | Minelab |
| Shipping Weight | 5.7300kg |
| Shipping Width | 0.320m |
| Shipping Height | 0.150m |
| Shipping Length | 0.870m |
| Shipping Cubic | 0.041760000m3 |
CTX 3030 WARRANTY
3 years control box and coil.
PRODUCT WARRANTY INFORMATION
All Minelab detectors are engineered in Australia, manufactured to exacting standards in ISO 9001/2000 quality accredited facilities, and backed by up to 3-years transferable warranties.
Minelab recommends that you register your product online shortly after purchase. If you do not want to register online, you can fill out the form supplied with the detector, and mail it to your nearest Minelab office.
If you lose the form or make a mistake, you can download and print a new Minelab warranty registration form.
The Minelab CTX 3030 metal detectoris the top of the range high performance treasure detector with the most accurate discrimination available for rejecting junk targets. Packed with advanced features such as Target Trace, GPS, PC Mapping and the freedom of wireless audio it is the ultimate in the Minelab range of Treasure, Coin & Relic Metal Detectors. A simple switch on and go metal detector with a number of additional coil options and waterproof down to 3m it is sure to have unearthing many valuable treasures from the past. Suitable for use on the beach, in the park or anywhere that people have lost valuables from the past.
With a full colour LCD and advanced Target Trace discrimination you will find more treasure, even amongst junk littered areas, in all ground conditions. Enjoy the freedom of wireless audio with the versatility of built-in speaker and headphone options. With Minelab’s exclusive integrated GPS, you can navigate to your favourite locations and record your finds. Transfer your detecting information onto Google Maps using the XChange 2 PC application.
Features:
Key Technologies:
CTX 3030 WARRANTY
3 years control box and coil.
PRODUCT WARRANTY INFORMATION
All Minelab detectors are engineered in Australia, manufactured to exacting standards in ISO 9001/2000 quality accredited facilities, and backed by up to 3-years transferable warranties.
Minelab recommends that you register your product online shortly after purchase. If you do not want to register online, you can fill out the form supplied with the detector, and mail it to your nearest Minelab office.
If you lose the form or make a mistake, you can download and print a new Minelab warranty registration form.
| Application | Coin, Relic, Jewellery & Beach (waterproof 10ft) |
| Technology | FBS 2, Smartfind 2, GPSi, Wi-Stream |
| Frequency/Transmission | Multiple frequencies: 1.5 - 100kHz |
| Coil (standard) | 11-inch waterproof Double-D smart coil |
| Audio Output | Built-in speaker, standard ¼-inch non-waterproof socket, custom waterproof socket (Minelab accessory headphones only) |
| Headphones Supplied | KOSS UR30 (100 ohm) supplied with detector (non-waterproof ) |
| Visual Display | Full colour LCD with backlight and adjustable brightness (1–10) |
| Backlight | Yes |
| USB Connectivity | XChange 2 (via USB) compatible with Windows XP, Vista and 7 |
| Memory | Settings saved automatically while detecting and remain until changed or reset |
| Depth Indication | Accurate gauge active in normal detecting and Pinpoint mode |
| Detect Modes | 10 fully customisable, including 5 preset (Coins, Beach, Relic, Silver & High Trash) |
| Discrimination | FSmartfind 2TM 2 dimensional colour discrimination: Ferrous 35, Conductivity 50 - 20 fully customisable discrimination patterns (2 per Search Mode) |
| Timings | - |
| Audio tone | Customisable Tone ID Profiles - 1, 2 ferrous (Fe), 2 conductive (Co), 4 Fe, 4 Co, 35 Fe, 50 Co or Combined |
| Audio Type | Normal, Long, Smooth & Pitch Hold |
| Ground Balance | Auto Compensation and Auto Ground Balance |
| Ground Balance Type | - |
| Trash Density | - |
| Pinpoint | Non-motion with modulated audio and visual crosshair on LCD, 2 modes: normal and sizing |
| Sensitivity Adjust | Auto and Manual (1–30) |
| Tune / Noise Cancel | Manual & Automatic (11 channels) |
| Threshold | Level adjustment (1–50), Pitch adjustment (1–30) |
| Target Volume Adjust | Limit & Gain (1 to 30) |
| Battery | Li-ion pack with fast charger. 12 V car adapter supplied with Standard Pack only |
| Low battery alert | Audio & visual indication. |
| Weight | 5.20 lbs (2.36 kgs) including Li-ion battery pack |
| Length | Min 37 in. (940 mm) – Max 55.3 in. (1405 mm) |
| Warranty | 3 years control box & coil. |
| SKU | 124013 |
| Model # | 3228-0101 |
| Barcode # | 811493012988 |
| Brand | Minelab |
| Shipping Weight | 5.7300kg |
| Shipping Width | 0.320m |
| Shipping Height | 0.150m |
| Shipping Length | 0.870m |
| Shipping Cubic | 0.041760000m3 |
