Minelab X-TERRA PRO Metal Detector



Get ready for an unparalleled detecting experience with the X-TERRA PRO by Minelab. This cutting-edge metal detector is a revolutionary creation, designed from scratch to provide exceptional performance. It combines the robust and compact form factor of the acclaimed EQUINOX series with the impressive legacy of the X-TERRA 305/505/705 detectors, known for their switchable frequency capabilities. With the introduction of PRO-SWITCH technology, the X-TERRA PRO sets new standards in metal detecting.

Included with the detector is the V12X Coil with Skidplate, offering remarkable waterproofing up to 5 meters (16 feet). You also have the option to enhance your detecting prowess with the V8X Elliptical Double-D or V10X Elliptical Double-D accessory coils, tailored to your specific needs.

Technical Specifi cations
Search Modes Park, Field, Beach
All-Metal Shortcut Yes
Custom Search Profiles 6
Operating Frequencies (kHz) Park and Field: 5, 10, 15 | Beach: 8
Noise Cancel Auto (19 Channels)
Ground Balance Auto, Manual, Tracking
Sensitivity 1 to 25
Target Volume 0 to 25
Threshold Level 0 to 25
Threshold Pitch Fixed
Target Identification (TID)
119 segment notch discrimination:
Ferrous: -19 to 0 | Non-ferrous: 1 to 99
Target Tones 1, 2, 5, All Tones (AT), Depth (dP)
Tone Break Ferrous (t1)
Tone Volume Tone 1 adjustable: 0 to 25
Recovery Speed 1 to 3
Depth Indicator 5 levels
Discrimination Segments 30 segments (in increments of 4 Target IDs)
Pinpoint Mode Yes
Wireless Audio Yes
Length (approx.)
Collapsed: 63 cm (25 in)
Extended: 138 cm (54 in)
Weight (including batteries) 1.3 kg (2.9 lbs)

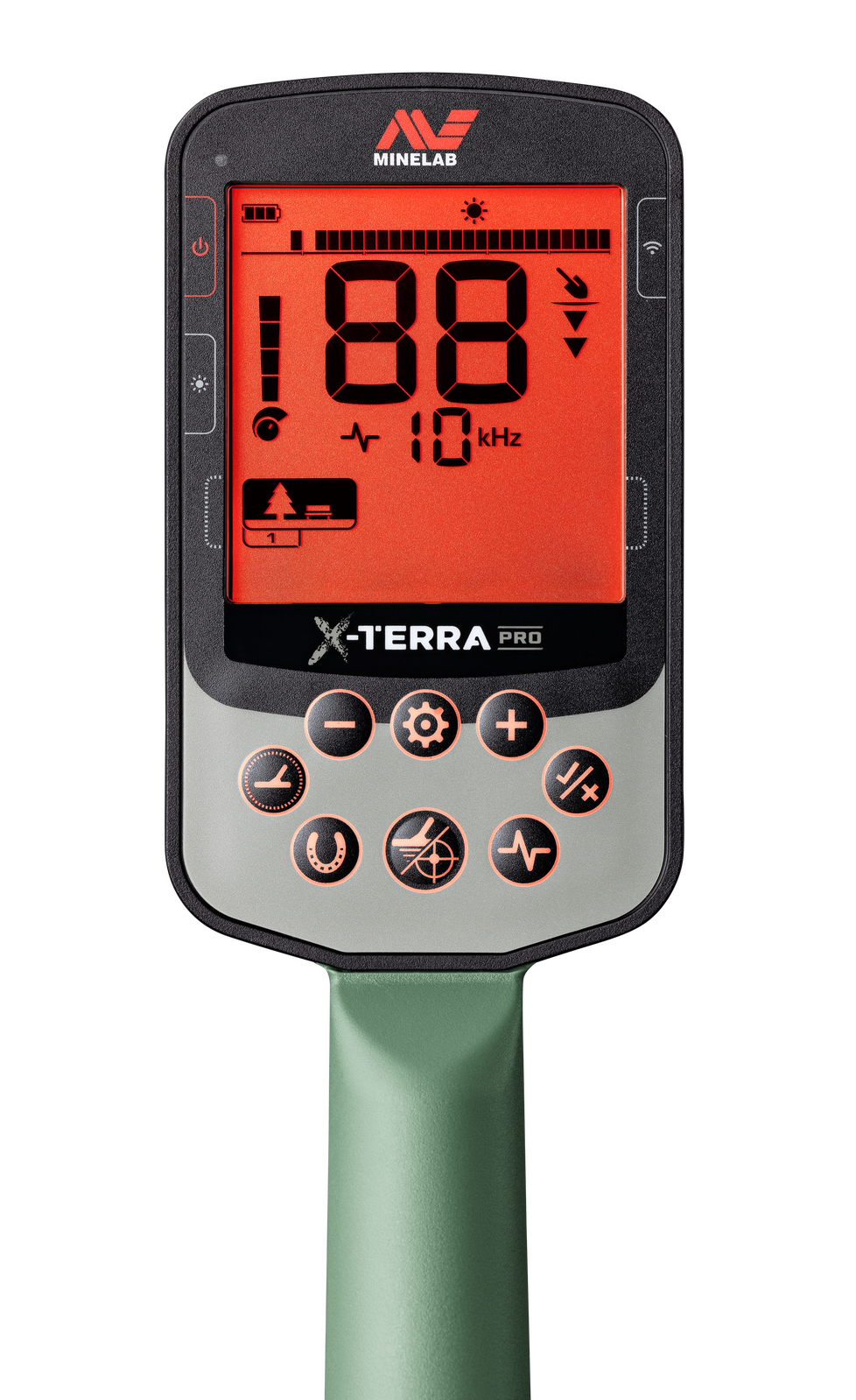

Display Monochrome LCD
Display and Keypad
Backlight (red)
Off, High, Low
Flashlight On, Off
Vibration (Master and Ferrous) On, Off

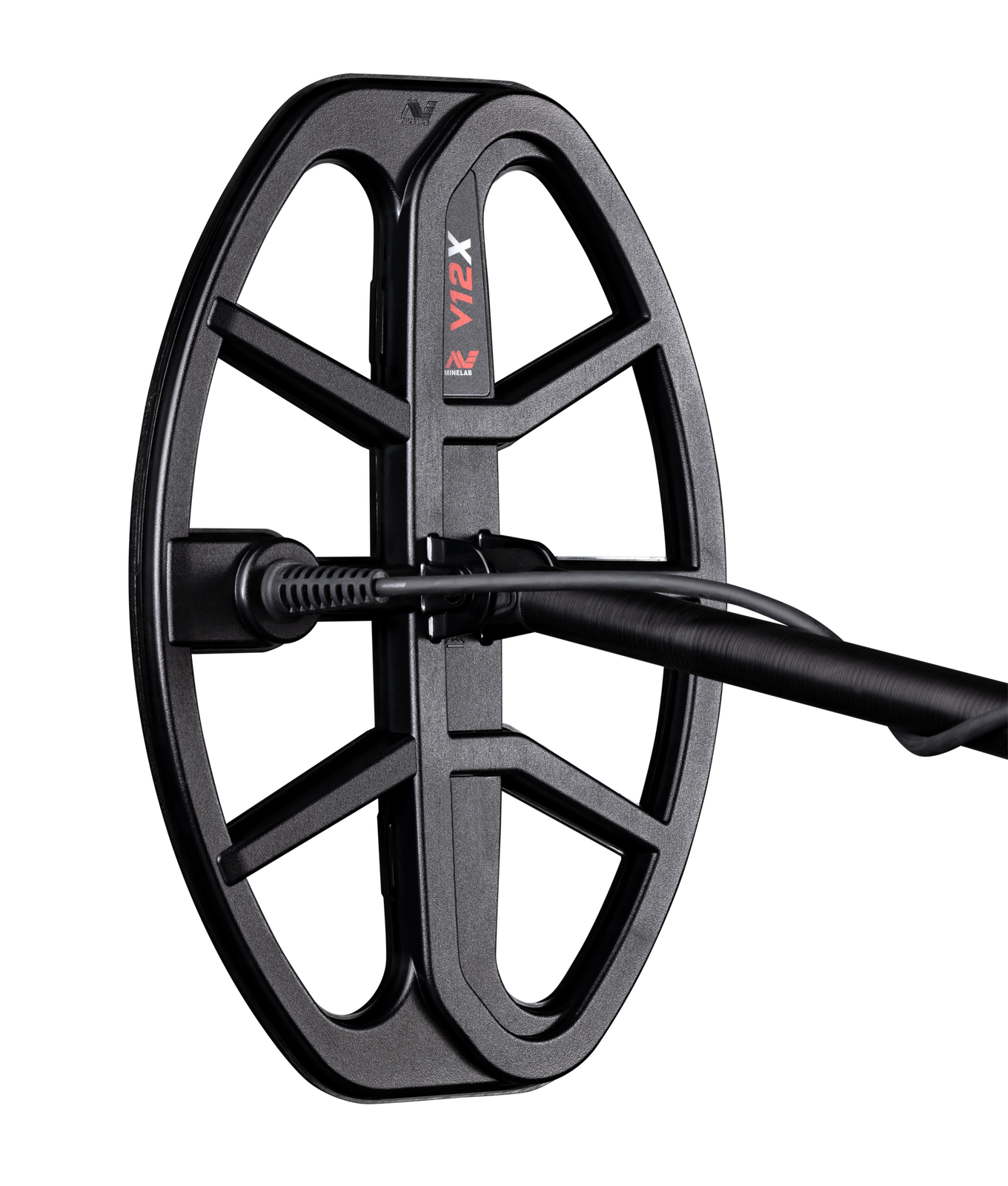

Supplied Coil V12X 12" Double-D Elliptical coil with skid
Audio Output
In-built loudspeaker, Wired 3.5 mm (⅛")
headphones, Wireless headphones
Battery 3.7 V / 5100 mAh Internal Lithium-Ion battery
Additional Included Accessories Getting Started Guide, Charging Cable
Waterproof 5 m (16 ft) IP68
Operating Temperature Range -10°C to +40°C (+14°F to +104°F)
Storage Temperature Range -20°C to +70°C (-4°F to +158°F)
Key Technologies Pro-Switch™





Minelab X-Terra Pro Metal Detector

3 years control box and coil.



All Minelab detectors are engineered in Australia, manufactured to exacting standards in ISO 9001/2000 quality accredited facilities, and backed by up to 3-years transferable warranties.

Minelab recommends that you register your product online shortly after purchase. If you do not want to register online, you can fill out the form supplied with the detector, and mail it to your nearest Minelab office.

If you lose the form or make a mistake, you can download and print a new Minelab warranty registration form.

Read the full Minelab warranty terms and conditions.
