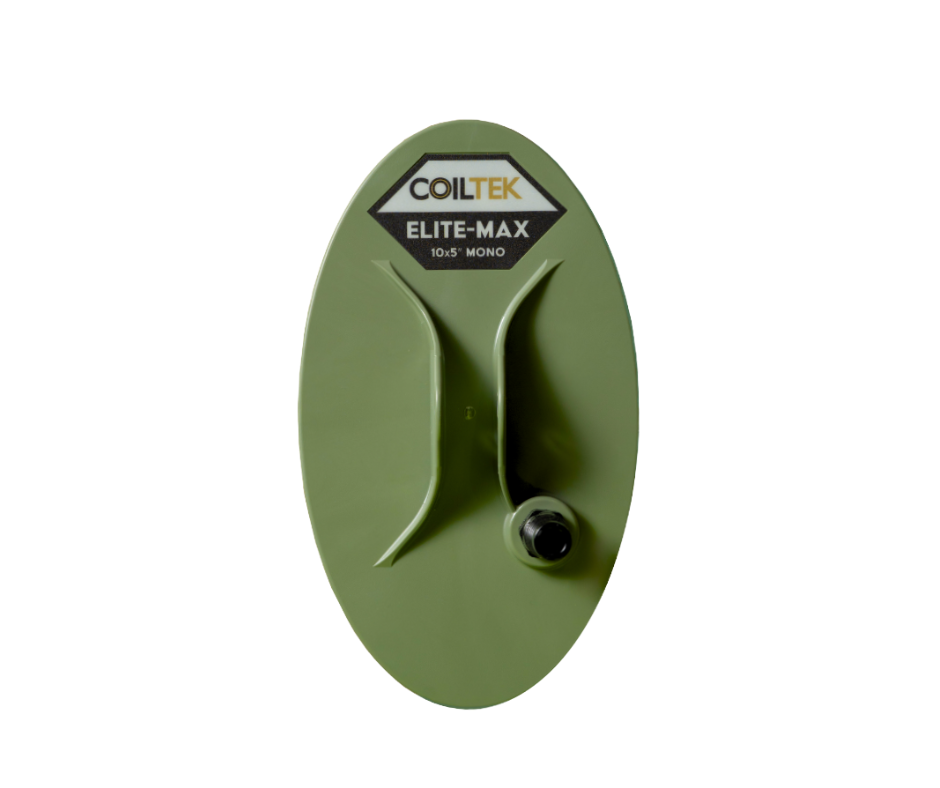

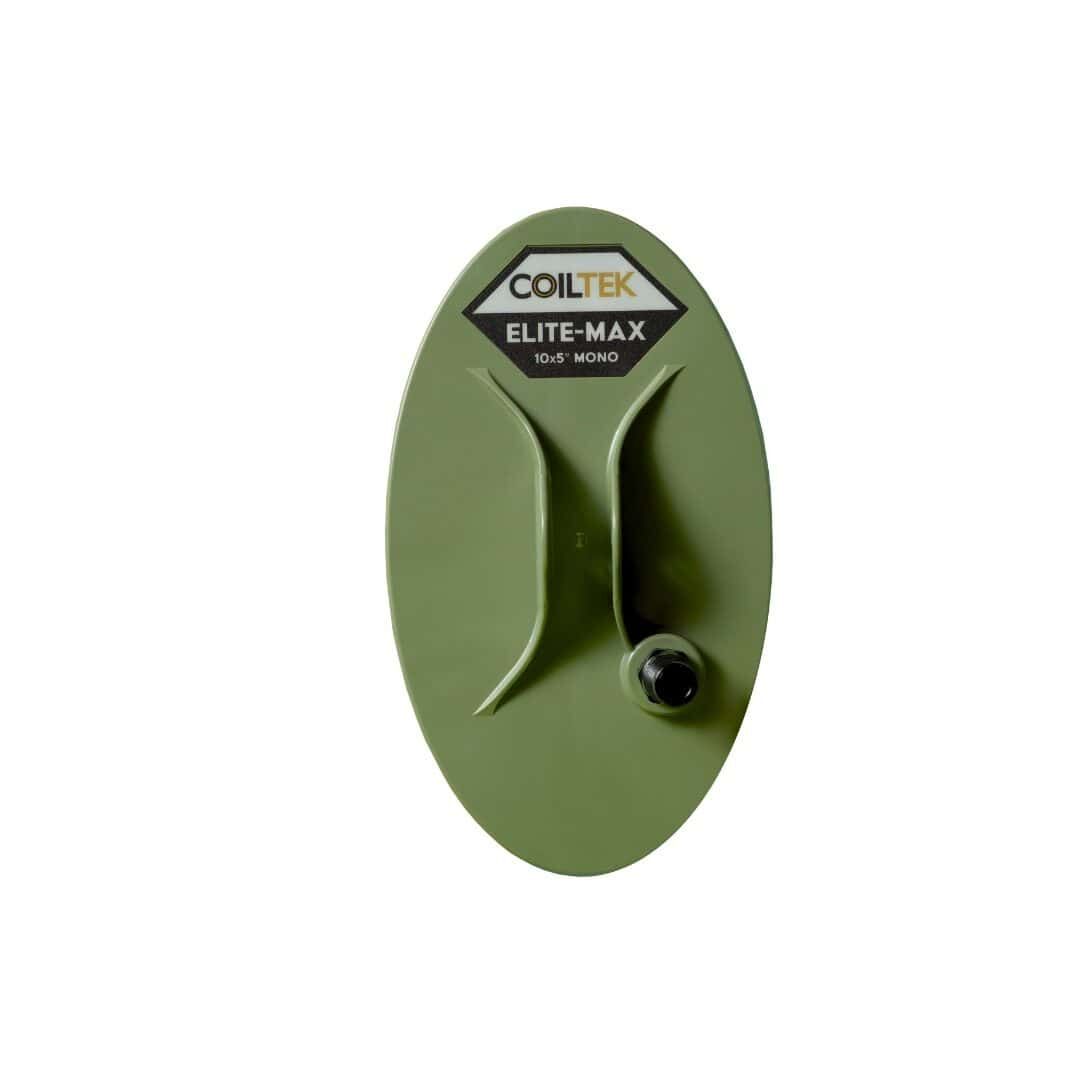

Coiltek 10″ x 5″ ELITE-MAX Mono Coil to Suit SD/GP, GPX & AlgoForce E1500

The Coiltek 10″ x 5″ ELITE-MAX Mono Coil is a compact, lightweight elliptical search coil built for prospectors wanting excellent sensitivity, sharp target response and precise control in tight goldfield terrain.

Its narrow 10″ x 5″ design makes it ideal for working around rocks, scrub, roots, creek beds, gullies, bedrock and other confined areas where larger coils can be harder to manoeuvre.

Compact Precision for Tight Ground

The elliptical shape gives operators excellent control and accurate coil placement, making it a strong option for detecting around obstacles, working shallow ground, cleaning up old patches and searching areas with limited swing room.

Excellent Sensitivity to Small Gold

The ELITE-MAX 10″ x 5″ Mono Coil is designed to deliver strong sensitivity to small gold while still offering practical depth for its size. Its sharp target response helps make small or shallow targets easier to isolate and recover.

Lightweight & Easy to Use

At approximately 650g, this coil is comfortable to swing and well suited to long detecting sessions. Its compact size and lightweight feel make it a practical choice for prospectors who want less fatigue and better control in difficult terrain.

Built for Goldfield Conditions

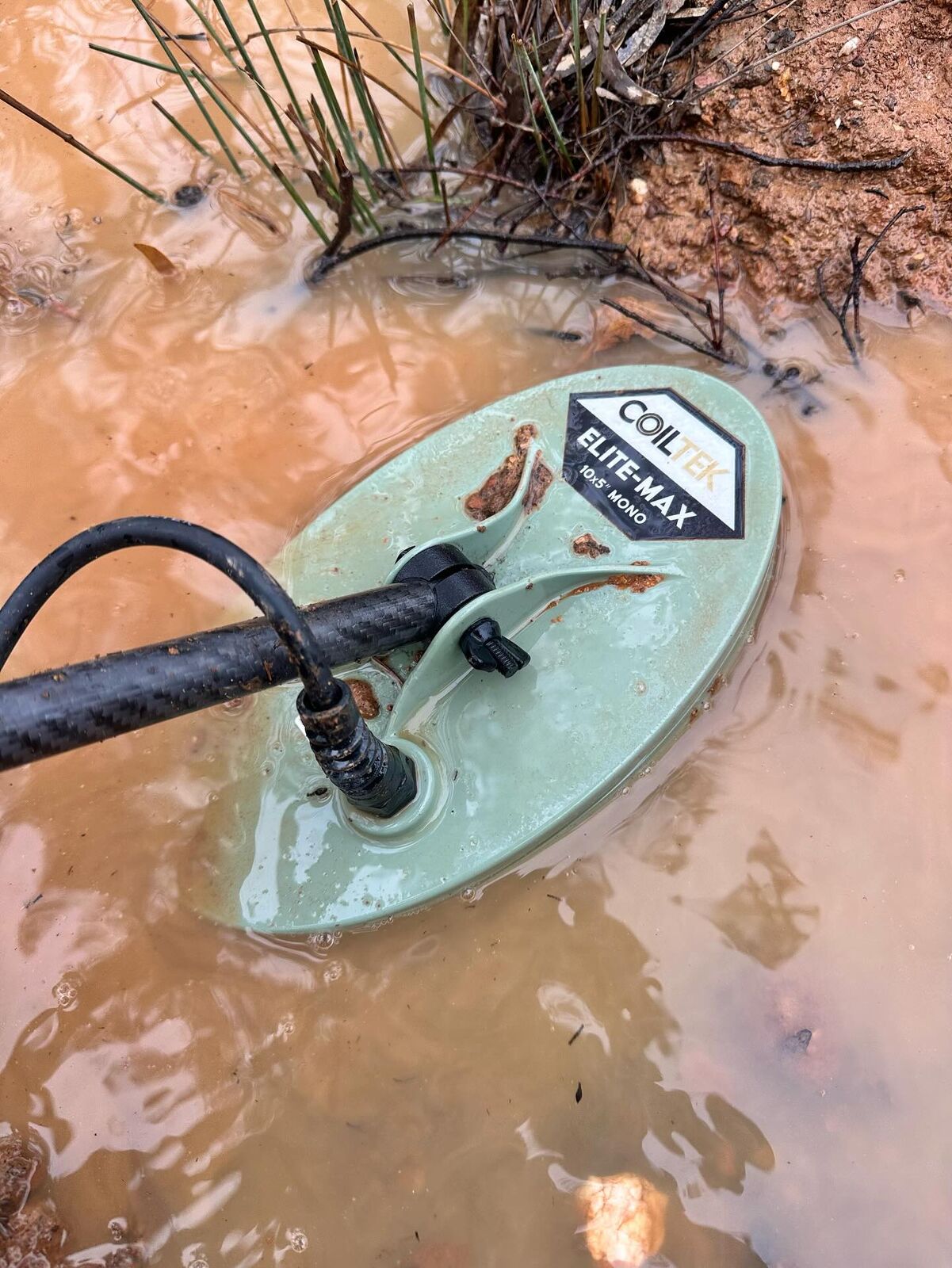

Built for regular prospecting use, the Coiltek 10″ x 5″ ELITE-MAX features a durable design, attached skid plate and waterproof rating to 1 metre, making it suitable for damp ground, shallow wet areas and harsh Australian goldfield conditions.

Compatibility

Suitable for selected detector models, including:

• Minelab SD series
• Minelab GP series
• Minelab GPX 4000
• Minelab GPX 4500
• Minelab GPX 5000
• AlgoForce E1500

Not compatible with the Minelab GPX 6000.

Please check your detector model and coil connection before purchase to ensure this coil is suitable for your setup.

Specifications

• Size: 250 x 145mm / 10″ x 5″
• Weight: 650g / 23oz
• Configuration: Mono
• Waterproof rating: Up to 1 metre / 3ft
• Skid plate: Attached
• Warranty: 2 years

Key Features

• Coiltek 10″ x 5″ elliptical mono search coil
• Excellent sensitivity to small gold
• Sharp response and accurate pinpointing
• Lightweight and easy to manoeuvre
• Ideal for rocky, scrubby and tight terrain
• Great for bedrock, gullies, creek lines and old patches
• Waterproof to 1 metre
• Attached skid plate included
• Compatible with selected SD/GP, GPX and AlgoForce E1500 detectors
• Not compatible with GPX 6000
• Backed by Coiltek’s 2-year warranty

The Coiltek 10″ x 5″ ELITE-MAX Mono Coil is a strong choice for prospectors wanting a compact, sensitive and easy-to-control coil for compatible gold detectors.

Compatibility Notice

This coil is manufactured by Coiltek and is designed to suit selected compatible detector models. Any reference to Minelab, SD, GP or GPX detector models is used to identify compatibility only.

Warranty: Coiltek coils are backed by a 2-year worldwide warranty from the date of original purchase, covering manufacturing defects. Proof of purchase is required (keep your receipt).
